Dimplex XL6N 0.85kW Compact Storage Heater 5.95kWh
This item is no longer available
- Warranty 3 Years
- TypeStorage Heater
- ControlManual
- Power850W
- Suitable for BathroomYes
- Manufacturer Guarantee3 years

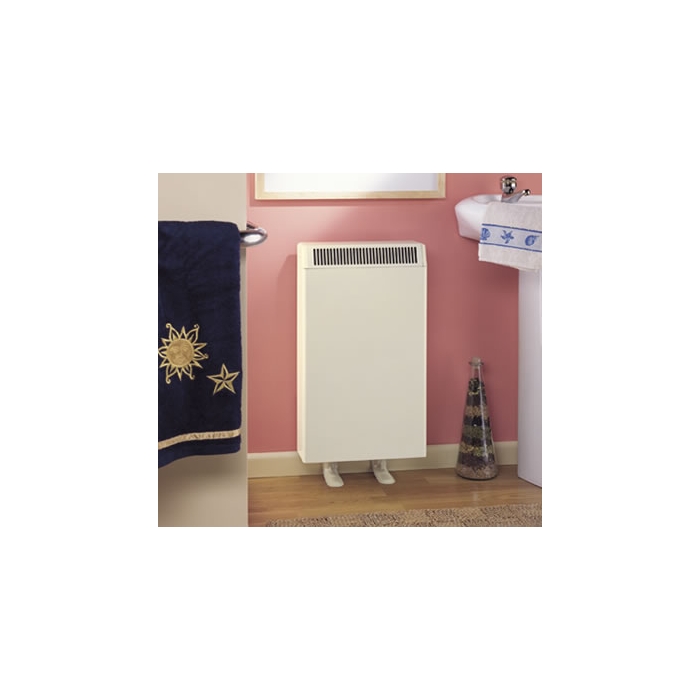

Dimplex XL6N Storage Heater
The XL6N compact storage heater from Dimplex is an extra compact version of the popular XL storage heaters, bringing the benefits of off-peak heating to areas which were traditionally too small for storage heaters such as bathrooms, cloakrooms and en suites. It is ideal for topping up existing heating in cold spots, improving the overall comfort and efficiency of the system.
XL6N Features
- Suitable for wet areas such as bathrooms
- Suitable for use in confined areas, for background heating or to supplement an existing system
- XL6N has preset input control
- Performance input rating - 0.85kW
- Charge acceptance 7 hour - 5.95 kWh
- Secure wall fixing for safety
- Feet may be fitted under carpet or on top of suitable floor covering
- Simple assembly for flexible positioning and quick installation
- Compatible with all off-peak tariffs
- Accessory towel rail (part no. STR6) and shelf (SHE6) available
| Model | XL6, XLS6 |
| Performance Input Rating | 0.85kW |
| Charge Acceptance 7 hr | 5.95kWh |
| Height | 700mm |
| Width | 332mm |
| Depth | 170mm |
| Height above floor | 88mm |
| Weight without bricks | 11kg |
| Weight with bricks | 41kg |
| Construction Details | Galvanised finish sheet steel base mounted on pressed steel feet, supporting double skin front and outer panels. |
| Internal Details | |
| Storage Core Material | High density bonded magnetite bricks. |
| Heating Element Type | Incoloy sheathed 850W. |
| Thermal Insulation Type | Front and Rear Panels – microporous silica. Top and Ends – resin free mineral wool. Base – calcium silicate slab. |
| Supply Connection | Located at front right-hand end of base. Cable entry bush and cable clips allow neat supply cable entry from either side of heater. |
| Assembly | Remove one piece grille/front panel assembly then front inner skin. Remove internal packing and element, position rear layer of bricks, heating element and front layer of bricks. |
| Controls | |
| Charge Controller – XL | Type: Bi-metal factory pre-set for fully charged condition. |
| Thermal Safety Device | Type: Bi-metal – manual reset. |
| Packing | |
| Case Assembly | Containing assembled heater case and heating element. Packed in single carton. |
| Storage Bricks | Supplied, 2 bricks per pack. Approx brick weight 7.5kg each. |
| Weight without bricks | 11kg. |
| Weight with bricks | 41kg |
| IP Rating | Drip-proof IPX2. |
| Finish | Willow White top, sides and front panel. |
| Manufacturer | Dimplex Heating |
|---|---|
| Model Number | XL6N |
| Type | Storage Heater |
| Power | 850W |
| Suitable for Bathroom | Yes |
| Control | Manual |
| Expired Status | No |
| Is Soft Bundle | No |
| Discontinued Status | expired |
