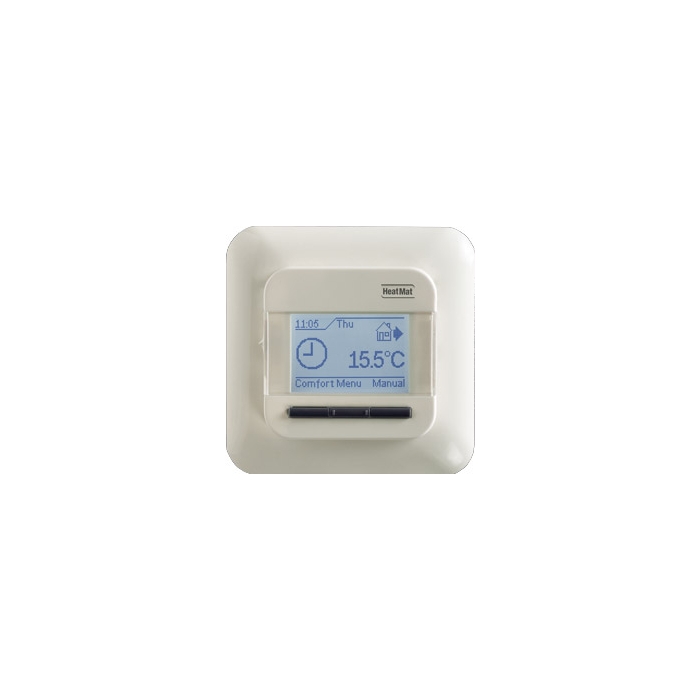

Heat Mat NGT-567-0010 Programmable Thermostat
- Warranty 1 Year
- TypeThermostat
- Manufacturer Guarantee1 year
NGT Thermostat - Simple to use.
This popular programmable thermostat allows you to easily achieve the perfect temperature and comfort you desire from your underfloor heating. The NGT-567-0010 is available in ivory and gloss black to suit your interior.
- Choose from four or six programmable events each day
- Displays energy usage in pounds and pence
- Central control version available to operate a maximum of 15 rooms.
The NGT learns the heat characteristics of your room to automatically control both room and floor temperature.
This thermostat ensures maximum comfort for minimum energy consumption. The running cost of your underfloor heating can be monitored to show you exactly how much electricity is being used in KW/h, £ and pence.
- Fully programmable thermostat
- Lower the temperature in rooms that are unoccupied, at different times, reducing your energy usage without reducing your comfort.
- Programmed events
- The NGT is simple to use and allows you to program 4 or 6 'events' per day to suit your lifestyle.
- Default schedule
- The thermostat is supplied with a default schedule, if you do not program any events your thermostat will follow this default schedule.
- Manual mode
- The NGT can easily be switched to manual mode and operated as a simple on/off thermostat. This function overrides the programmed event schedule to allow you to set the desired temperature manually.
- Energy monitor
- The energy monitor allows you to view your underfloor heating system's energy consumption for the past 2 days, month or year.
- Operation
- The NGT is programmed using three buttons on the front below the screen. Find out about the NGTouch if you prefer a touchscreen thermostat.
| Supply Voltage | 230V AC + 10% 50/60Hz |
| Output relay | SPST 16A, resistive load or 1A inductive load |
| Interrupter | 2-pole, 16A |
| Temperature range | +5/+40oC |
| Floor limit range | +5/+40oC |
| Battery backup | 5 years |
| Ambient temperature | 0/+40oC during operation |
| On/Off differential | 0.4oC |
| Regulation principle | PWM/PL |
| Housing | IP21 |
| External sensor type | NTC (12 KΩ) 3m |
| Dimensions | (H/W/D) 81/81/40mm (20mm depth) |
| Display | easy to read pure white ultra-large dot matrix display |
| 100x64 pixel STN - White backlight | |
| EU registered design | 001101349-0001 |
| Warranty | 10 years |
| Manufacturer | Heat Mat |
|---|---|
| Model Number | NGT-567-0010 |
| Type | Thermostat |
| Expired Status | No |
| Is Soft Bundle | No |
| Discontinued Status | expired |
