Heat Mat PKM-160-0230 380W Underfloor Heating Mat

This item is no longer available
View in Store
  • Chapmans Cradley Heath
  • On Display
  • Ready to Take Away
  • Warranty 1 Year
  • TypeHeating Mat 160W/m
  • Suitable for BathroomYes
  • Suitable for TilesYes
  • Suitable for Bonded WoodYes - With levelling compound
  • Suitable for CarpetYes - With levelling compound
  • Suitable for VinylYes - With levelling compound
  • Manufacturer Guarantee1 year

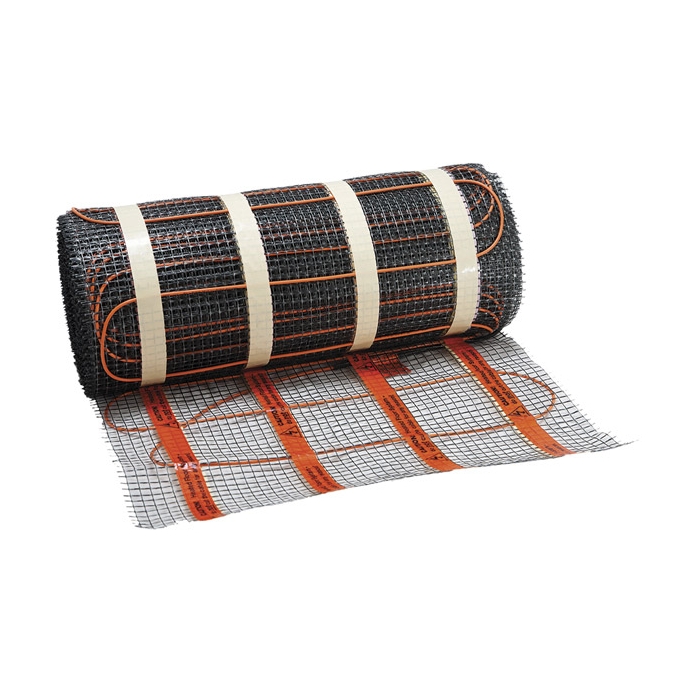

Heat Mat PKM-160-0230 160W Underfloor Heating Mat

The popular 160W/m2 electric underfloor heating mats are high-quality, trusted by installers and homeowners nationwide and easy to fit.

160W mats offer a versatile and fast reacting underfloor heating system:

  • Designed to provide floor warming in all rooms and sole source heating in well-insulated areas
  • Integrated earth shield (unlike carbon films), allowing safe installation in wet areas including bathrooms
  • Ideal for tiled floors, and also perfect for use beneath carpet, bonded wood and vinyl surfaces (if covered with a levelling compound)

A professional fast-to-fit system designed to provide energy-efficient floor warming in all rooms, and a full heating system in well insulated areas.

This award winning electric underfloor heating mat range can be used beneath virtually any type of floor covering ensuring luxurious warm floors whatever your chosen floor finish. Our technologically advanced wire design delivers minimal build height combined with a robust high-powered heating cable.

Simple and speedy installation
Heat Mat electric underfloor heating mats are incredibly simple to install, and in large areas can take one third of the time a loose heating cable would take to fit. The mats can be cut and turned to ensure that they fit the room perfectly, and for particularly complicated areas the cable can be stripped from the mat and laid as a loose cable. The mats readily affix to the floor with four strips of double-sided tape, and the strong fibreglass mesh above the cable ensures it is protected during tiling.
Suitable for nearly any floor covering
If you are unsure of the final floor covering, 160W mats can be fitted and then covered by a flexible levelling compound allowing a huge range of final floor coverings to be fitted on top including tiles, carpet, wood and vinyl.
Energy efficient solution
160W heating mats are extremely efficient at converting electricity into heat. They can be powered from renewable energy sources. Our NGTouch thermostat has energy saving features and displays usage in £'s and pence helping to ensure your system runs efficiently.
Lifetime guarantee
We manufacture our high-quality heating mats and cables in Denmark, Germany and the UK. Our electric underfloor heating mats are supplied with a Lifetime Warranty and independently BEAB and Semko approved.
This Mat
Product CodePKM-160-0230
Size in m²2.3m²
Length in m4.6m
Width in m0.5m
Wattage380W
Resistance155Ω
General Technical Data for 160W mats
General ConstructionDual conductor wire with earth
Supply Voltage240V
Power Output160W/sqm
Output Range for 200W mats179W-1700W
Maximum Load17W/m
Standard Range1.1m2 - 10.4m2
Mat Dimensions0.5m wide x 2.2m to 20.8m
Maximum Cable Temperature90 °C
ApprovalsCE Marked and BEAB system approved
Wire Thickness2.7mm to 3.2mm depending on Ohm Value
Cable FlexibilityMinimum allowable cable radius is 18mm
Power Range168W to 1973W
Approved in accordance withEN 60335-1:1998, EN60335-2-17:1999, IEC 60730
IP RatingIPX7
Construction
Thermal Conductor2 x resistance wire insulated with fluoropolymer (FEP 7Y) tested to 200°C
Outer InsulationPVC (Y) tested to 90°C
Coldtail Lead2m double insulated cable
Earth Protection100% aluminium earth shield
Reinforcement MaterialsFibreglass wire
Reinforcement MeshFibreglass mesh
Fixing Material4 rows of double sided tape
Reinforcement MeshFibreglass mesh
More Information
Manufacturer Heat Mat
Model Number PKM-160-0230
Type Heating Mat 160W/m
Suitable for Bathroom Yes
Suitable for Vinyl Yes - With levelling compound
Suitable for Carpet Yes - With levelling compound
Suitable for Bonded Wood Yes - With levelling compound
Suitable for Tiles Yes
Expired Status Yes
Is Soft Bundle No
Is On Display true
Discontinued Status expired
